Why Choose ALPOLIC/fr

01

Fire-retardant ACM core

Two aluminium skins are bonded to a mineral-filled thermoplastic core to improve fire performance over standard polyethylene-core composite panels.

02

Large flat facade panels

The panel format supports clean contemporary layouts with excellent flatness and lower weight than comparable solid aluminium solutions.

03

Lumiflon FEVE finish system

Factory coil-coated Lumiflon FEVE finishes deliver strong colour retention, weather resistance, and consistent coating quality across broad finish ranges.

ALPOLIC/fr Overview

Fire-retardant aluminium composite material cladding

ALPOLIC/fr is a fire-retardant aluminium composite material developed for architectural cladding, including commercial facades, low-rise work, and curtain-wall applications. Manufactured by Mitsubishi Chemical Infratec Co., Ltd., it combines two aluminium skins with one of the more advanced fire-resistant core materials used in ACM panels.

Compared with solid aluminium panels, ALPOLIC/fr delivers strong flatness with reduced weight while still supporting the structural demands of large facade panels. Its coil-coated aluminium skins and precise factory manufacturing make it a reliable option for contemporary exterior design.

Key features

  • Fire-retardant ACM construction using two aluminium skins laminated to a mineral-filled thermoplastic core.
  • Lumiflon FEVE fluoropolymer coating system for durability, weather resistance, and long-term colour retention.
  • 4 mm panel thickness with standard widths of 1270 mm or 1575 mm.
  • Panel lengths from 3200 mm up to 7200 mm for large-format architectural layouts.
  • Manufactured by Mitsubishi Chemical Infratec Co., Ltd. with globally proven production quality and tolerances.

Technical highlights

  • Material type: aluminium composite material (ACM).
  • Core: fire-retardant thermoplastic core.
  • Aluminium skin thickness: 0.5 mm.
  • Panel thickness: 4 mm.
  • Surface coating: Lumiflon FEVE fluoropolymer coating.
  • Panel widths: 1270 mm or 1575 mm.
  • Panel lengths: 3200 mm up to 7200 mm.

Typical applications in New Zealand

  • Commercial and low-rise curtain-wall cladding.
  • Fire-rated interior wall linings and ceilings.
  • Corporate signage and branding elements.
  • Fascias and feature walls.

Why architects specify it

ALPOLIC/fr is typically specified for projects that need lightweight composite construction, consistent panel flatness, and a wide finish range in one cladding system.

  • Lightweight panels compared with solid aluminium.
  • Excellent rigidity and flatness for facade expression.
  • Extensive colour and finish options.
  • High-performance Lumiflon FEVE coating technology.
  • Proven use across international facade projects.

Project Gallery

Built examples using ALPOLIC/fr

The gallery below uses imagery from the earlier ALPOLIC/fr page and applies the same slow zoom treatment now used for the updated ALPOLIC product template.

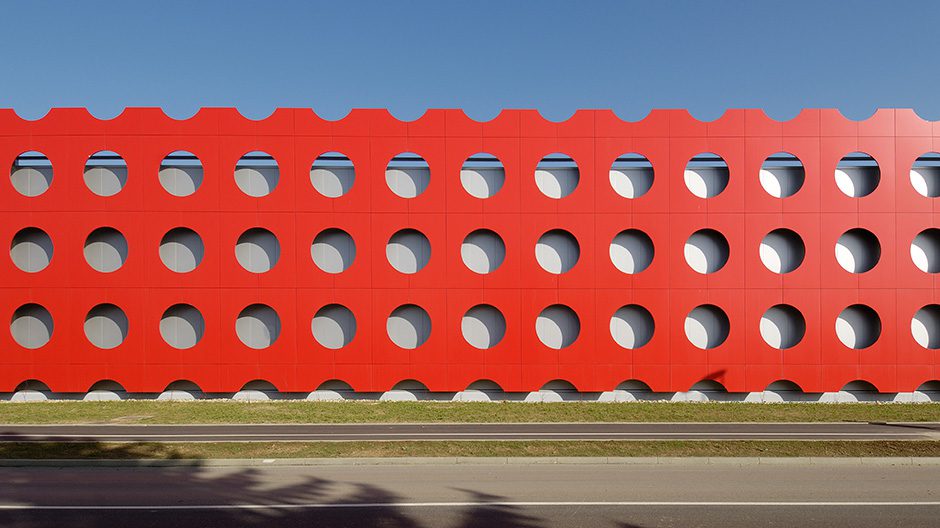

Mercator Shopping Center using ALPOLIC/fr

Selected Project

Mercator Shopping Center

ALPOLIC/fr Resources

Technical resource library

Resources

Document library

Open in new tab

Certification

Certificate CMNZ25004 20251110

Download PDF

If your browser blocks the embedded preview, use the open or download link above.

Need Help Specifying?

Our technical team can assist with product selection, CAD details, and sample requests for your next project.

View All Systems

Get in Touch

Tell us about your project and we'll help with specification.
