Concealed fixing system
- Stainless steel concealed clips eliminate visible fixings for a clean finish
- Three profile sizes: PS05050, PS10050, PS15050
- All profiles at 450mm span centres
- Available in both Innovative and Premium colour ranges
loading
Why Choose Innowood InnoScreen
01
Multiple performance benefits
InnoScreen systems deliver shade and light control, privacy, energy efficiency, natural ventilation, weather protection, noise reduction, and vision control — all from a single architectural screen system.
02
Built-in fire performance
Fire retardant is integrated during the extrusion process rather than applied as a surface coating. InnoScreen can achieve Material Group Numbers 1-S or 2-S for projects with demanding fire compliance requirements.
03
Clean finish, hidden fixings
The concealed clip fixing system eliminates visible screws and nails for a clean, refined screen finish. Face and rear fixing profiles are also available where concealed fixing is not required.
InnoScreen Overview
Timber screens without timber's limitations
Innowood Screen and Louvre systems deliver multiple benefits over real timber — combining the warmth and character of a wood-look finish with the durability, fire performance, and low maintenance of a composite material.
InnoScreen systems are suitable for interior and exterior applications across residential and commercial projects, providing architectural screening for facades, balustrades, privacy walls, pergolas, and feature elements. Fire-retardant options are available to meet Material Group Numbers 1-S or 2-S where required.
Face & rear fixing system
- Face and rear fixing options for applications where concealed fixing is not required
- Six profile options: FS04030, FS04030S, FS06535, FS04535, SS05050, RS10050, RS15050
- Coverage ranges from 30mm to 150mm
- All profiles at 450mm span centres
Product Range
Profile specifications
Concealed Fixing System
Stainless steel concealed clips for a clean, fastener-free screen finish. All profiles at 450mm span centres.
| Product Code | Span Centres | Innovative Colours | Premium Colours |
|---|---|---|---|
| PS05050 | 450mm | ✓ | ✓ |
| PS10050 | 450mm | ✓ | ✓ |
| PS15050 | 450mm | ✓ | ✓ |
Face & Rear Fixing System
Face and rear fixing profiles covering 30mm to 150mm. All profiles at 450mm span centres.
| Product Code | Span Centres | Innovative Colours | Premium Colours |
|---|---|---|---|
| FS04030 | 450mm | ✓ | — |
| FS04030S | 450mm | ✓ | ✓ |
| FS06535 | 450mm | ✓ | — |
| FS04535 | 450mm | ✓ | — |
| SS05050 | 450mm | ✓ | ✓ |
| RS10050 | 450mm | ✓ | — |
| RS15050 | 450mm | ✓ | — |
Colour Range
Innovative & Premium colour ranges
InnoScreen is available in Innovative and Premium colour ranges. American Oak and Spotted Gum are held in stock — all other colours are available by indent with lead times and minimum order charges.
Innovative Range
American OakStock
Western Red Cedar
Weathered Wood
Spotted GumStockPremium Range
Premium Oak
Tasmanian Oak
Kiwi BlackInnoScreen Projects
Timber look screens across New Zealand

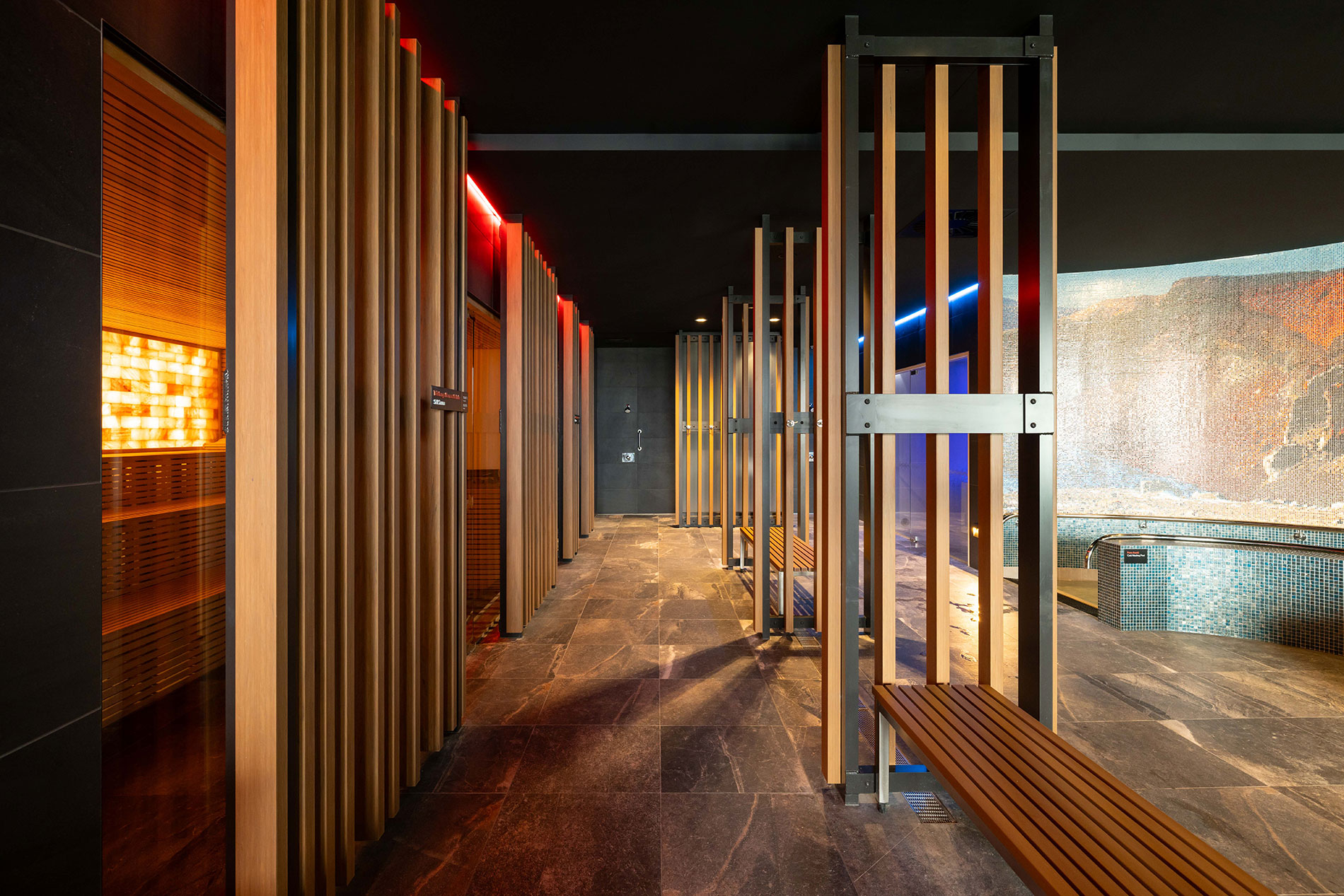

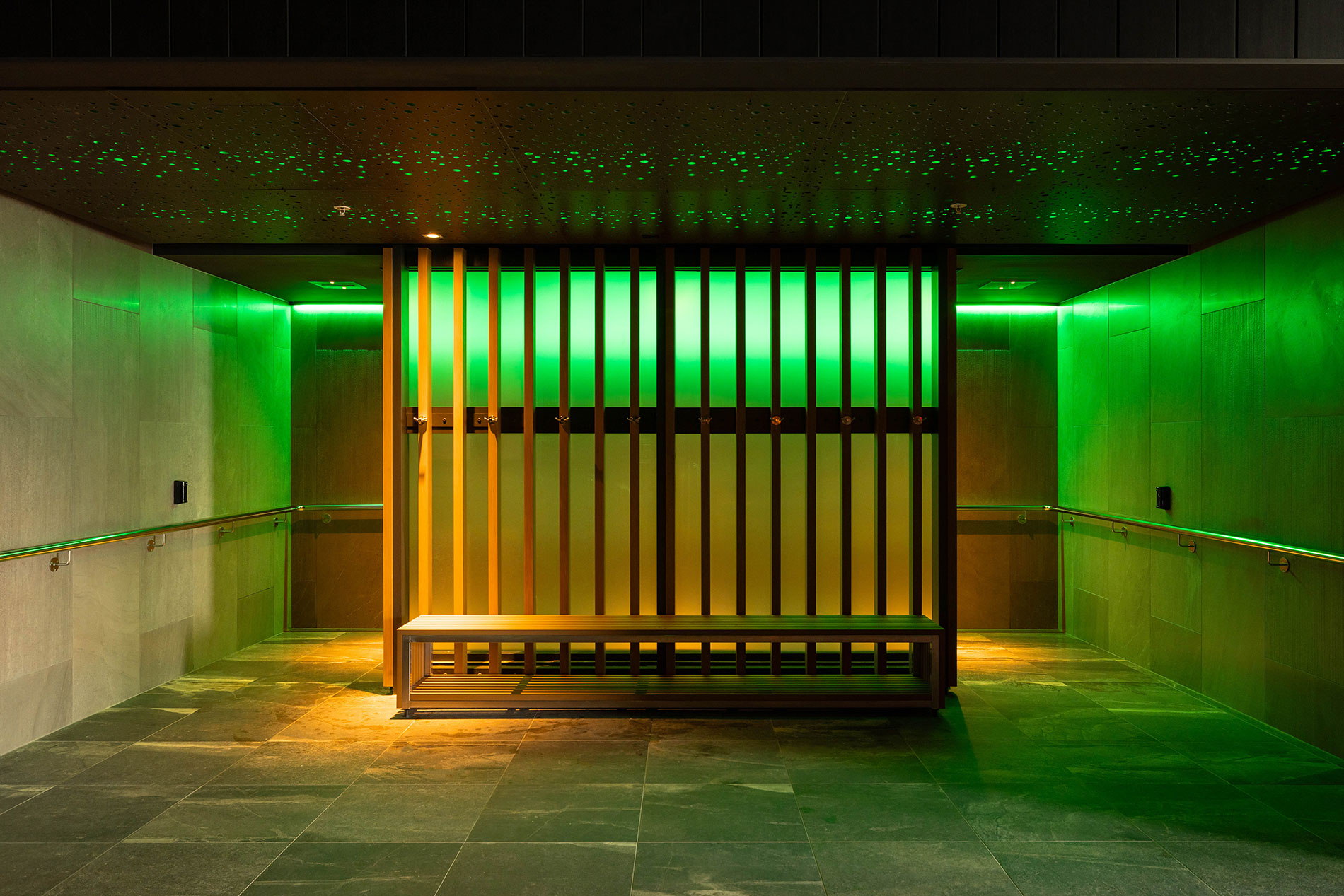

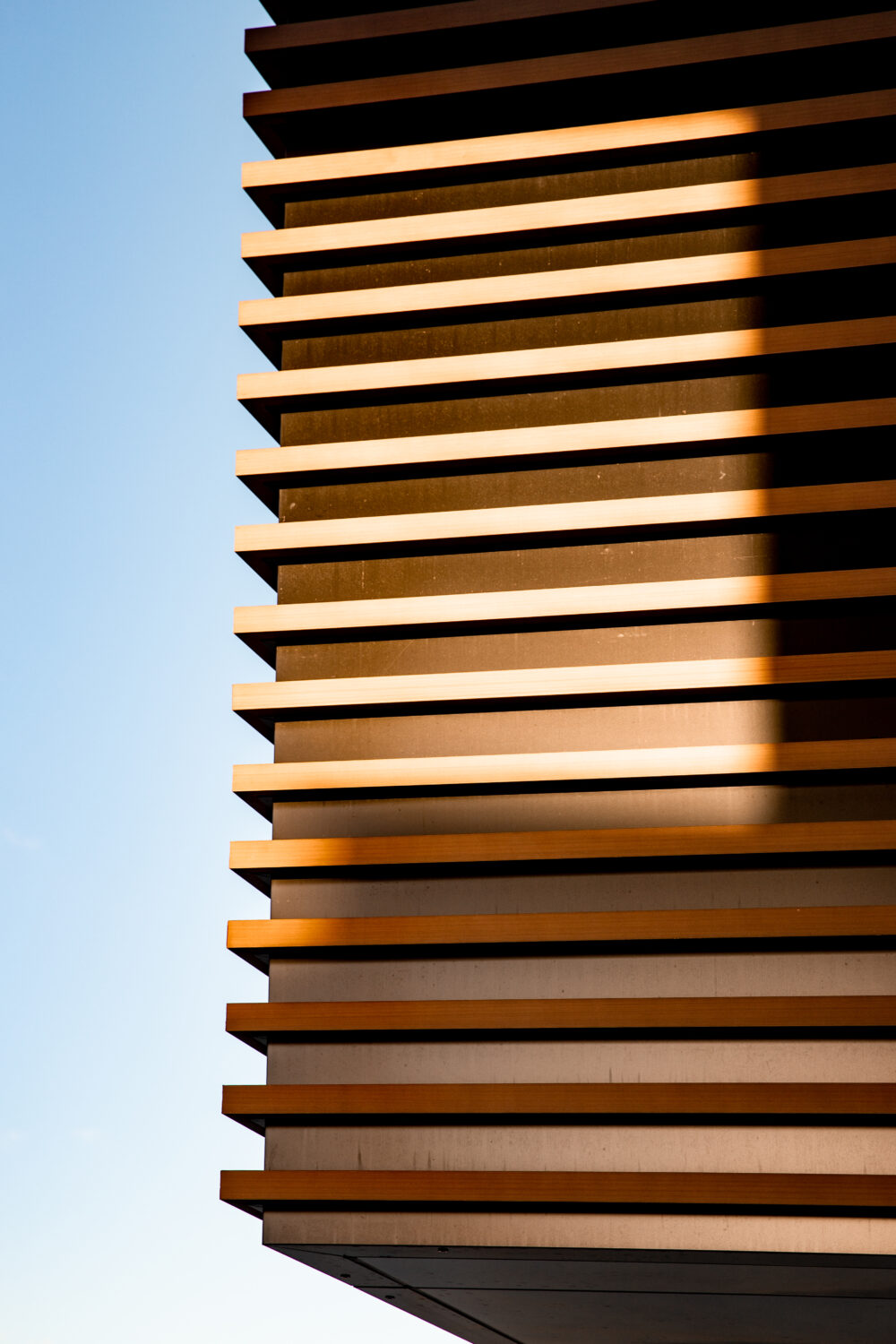

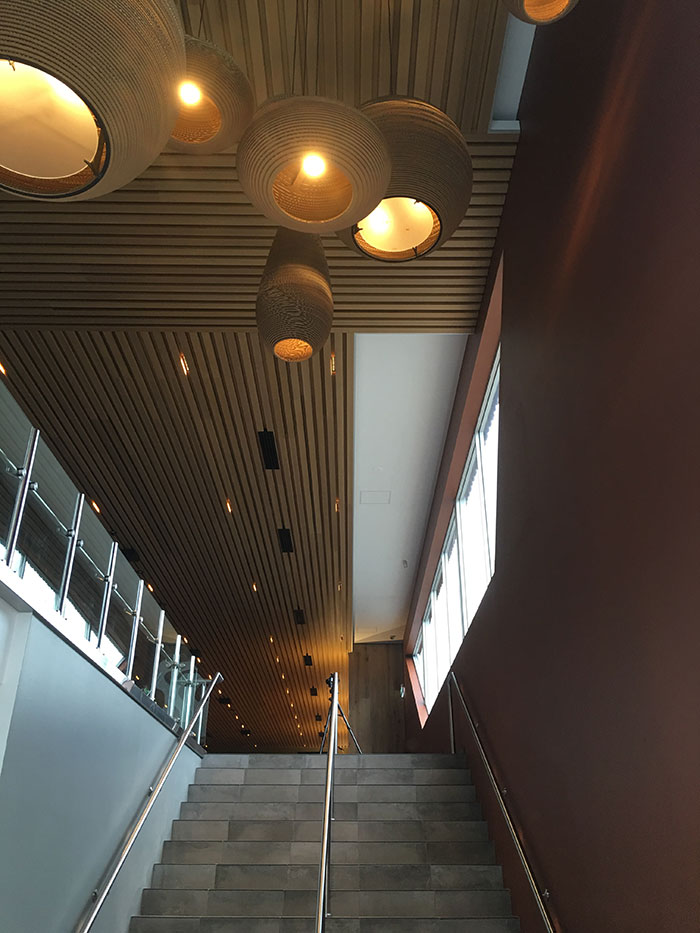

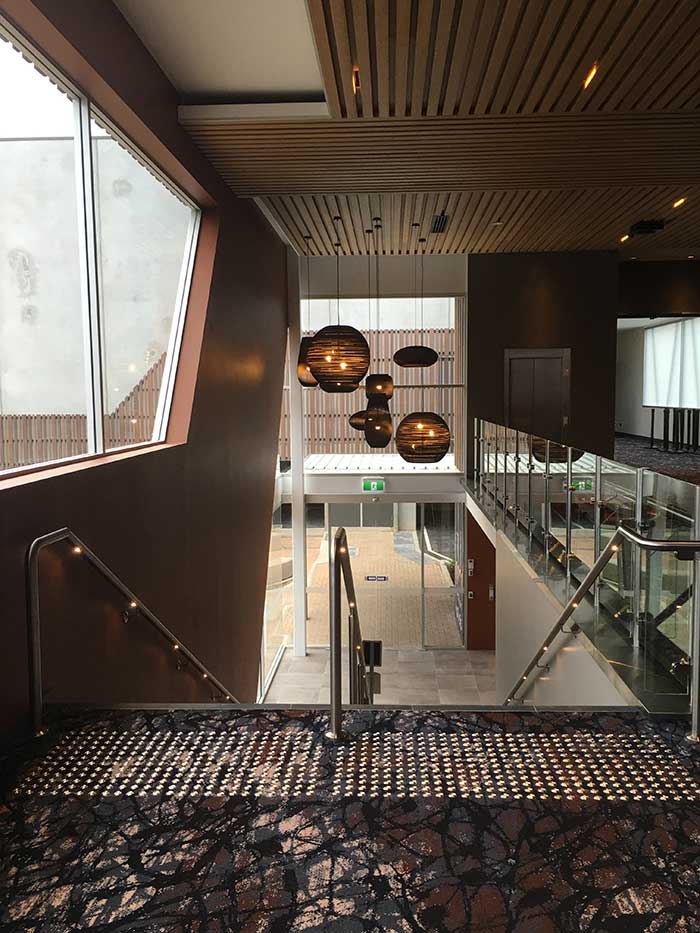

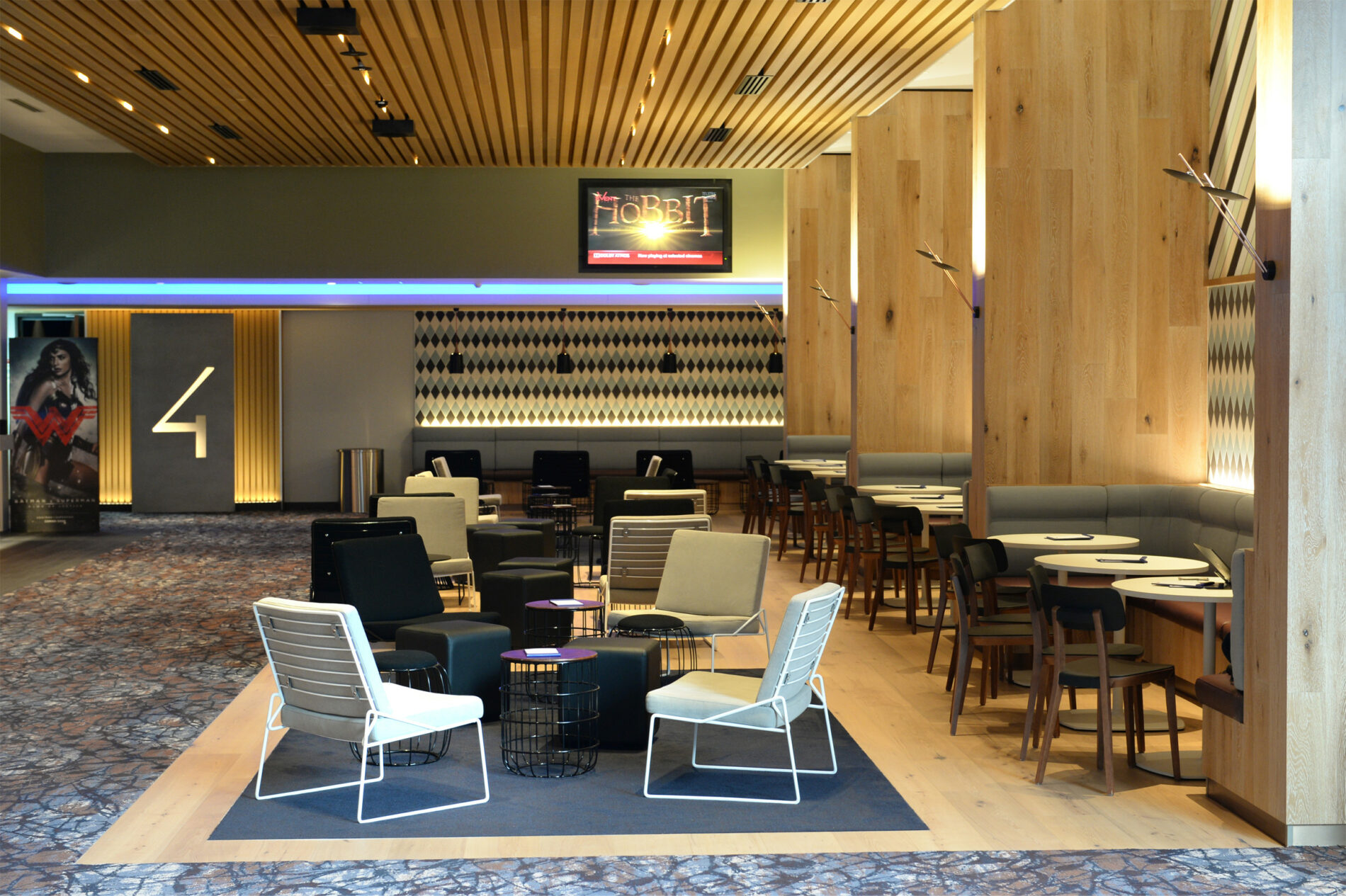

InnoScreen composite screen systems create architectural interest, privacy, and shade across residential, commercial, and hospitality projects.
Selected Project
Screen Project
Innowood InnoScreen Resources
Brochure, installation manuals, and care guide
Access the InnoScreen brochure, concealed lock-in fixing manual, face and rear fixing manual, and care and maintenance guide below.
Resources
Document library
If your browser blocks the embedded preview, use the open or download link above.
Need Help Specifying?
Our technical team can assist with product selection, CAD details, and sample requests for your next project.
Get in Touch
Tell us about your project and we'll help with specification.
