Concealed clip fixing
- Stainless steel clips with fully concealed fixings
- Consistent shadow lines for a refined, architectural ceiling finish
- CL14025 profile at 140mm coverage and 450mm span centres
loading
Why Choose Innowood InnoCeil Timber Ceilings
01
Built-in fire performance
Fire retardant is included in the extrusion process — not a surface coating — so it cannot delaminate over time. InnoCeil can achieve Material Group Numbers 1-S or 2-S for projects with demanding fire compliance requirements.
02
High acoustic performance
InnoCeil systems can incorporate a unique acoustic material designed to enhance sound absorption and reduce sound transmission — making it the ideal ceiling solution for commercial, health, and educational environments.
03
Clean finish, no visible fixings
InnoCeil ceiling systems are designed to eliminate exposed screws, nails, holes, and surface fixings — delivering a clean, smooth, and superior finish with hidden fixing systems across all profiles.
Innowood InnoCeil Overview
Timber sophistication built for ceilings
InnoCeil delivers the ideal timber look ceiling solution for any commercial or residential application — creating instant sophistication as an architectural feature while remaining lightweight and cost-effective as an alternative to natural timber.
Innowood has been increasingly used as an alternative to real timber due to its ability to build in various levels of fire performance. Over the years it has been supplied to numerous projects meeting Material Group Numbers 1-S or 2-S. The inclusion of fire retardant in the extrusion process means minimal change to the finished look, and unlike a surface coating, it cannot delaminate in the future.
Secret fixed & suspended systems
- Secret fixed shiplap in 5 profile sizes from 120mm to 250mm coverage
- Traditional tongue and groove design with no visible fixings
- Suspended click-on system clips onto aluminium carrier — fast to install and replace
- Aluminium carrier available in 60mm and 130mm centres
- Lightweight and can be ordered to length to reduce waste and cost
Product Range
Profile specifications
Concealed Clip Fixing
Stainless steel concealed clips with consistent shadow lines. Profile at 450mm span centres.
| Product Code | Coverage | Span Centres | Innovative Colours | Premium Colours |
|---|---|---|---|---|
| CL14025 | 140mm | 450mm | ✓ | ✓ |
Secret Fixed Shiplap
Traditional tongue and groove design with hidden fixings. All profiles at 450mm span centres.
| Product Code | Coverage | Span Centres | Innovative Colours | Premium Colours |
|---|---|---|---|---|
| CL14010 | 120mm | 450mm | ✓ | ✓ |
| CL21923 | 195mm | 450mm | ✓ | ✓ |
| CL26430 | 240mm | 450mm | ✓ | ✓ |
| CL16728 | 148mm | 450mm | ✓ | — |
| CL27765 | 250mm | 450mm | ✓ | — |
Suspended Click-On System
Clip-on system using suspended aluminium carrier in 60mm or 130mm centres.
| Product Code | Coverage | Span Centres | Innovative Colours | Premium Colours |
|---|---|---|---|---|
| CL02050 | 20mm | 450mm | ✓ | — |
| CL03070 | 30mm | 450mm | ✓ | — |
| CL03070B | 30mm | 450mm | — | ✓ |
Colour Range
Innovative & Premium colour ranges
InnoCeil comes in Innovative and Premium colour ranges. Not all colours are available in all profiles — please check with us prior to specification. All colours are indent; lead times and minimum order charges may apply.
Innovative Range
American OakStock
Western Red Cedar
Weathered Wood
Spotted GumPremium Range
Premium Oak
Tasmanian Oak
Kiwi BlackInnoCeil Projects

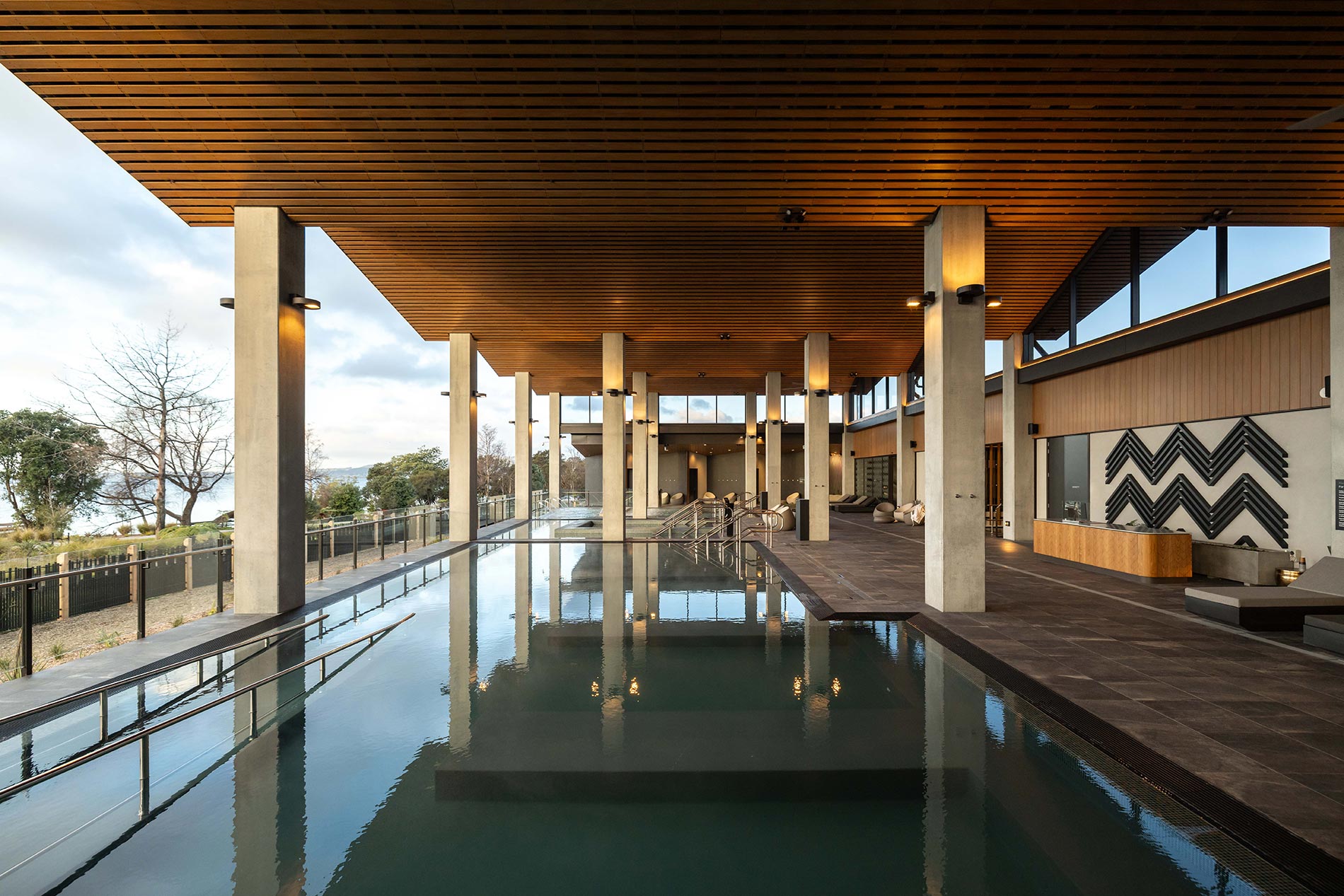

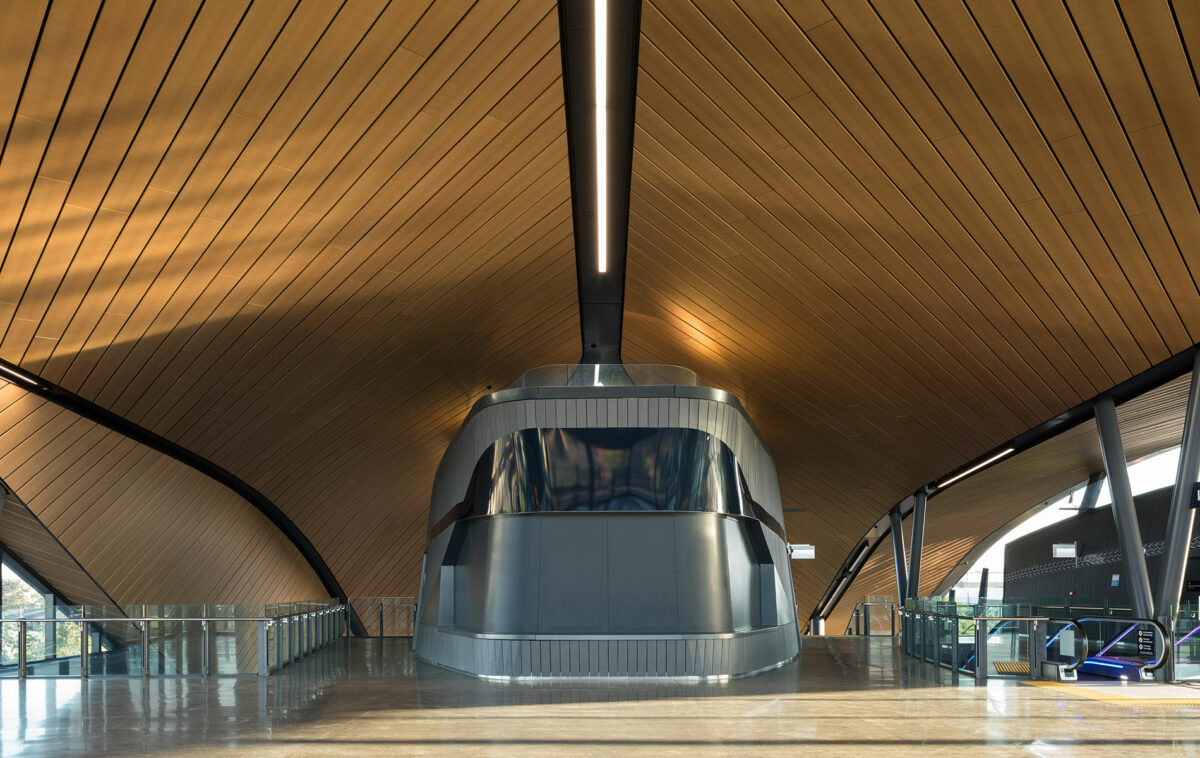

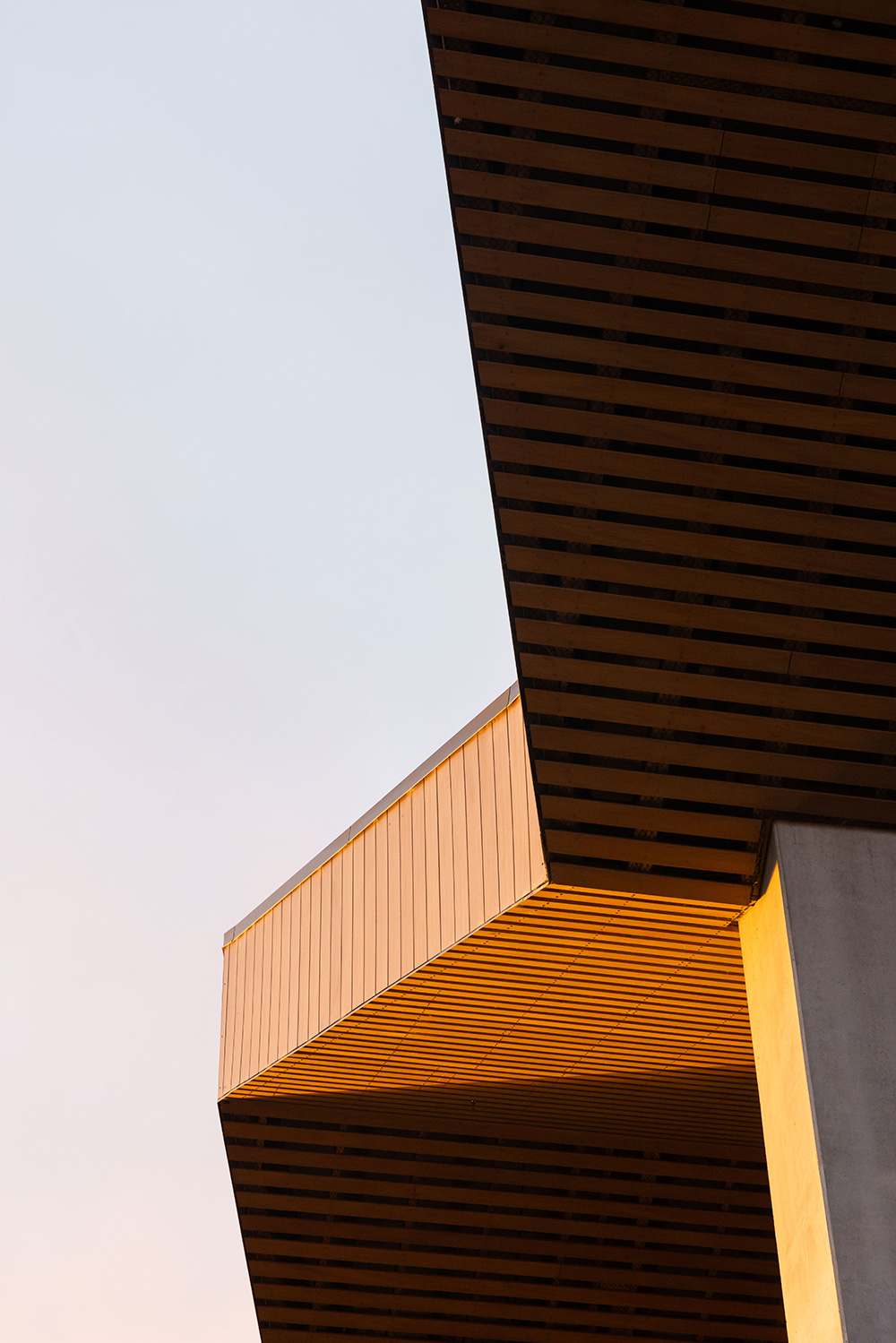

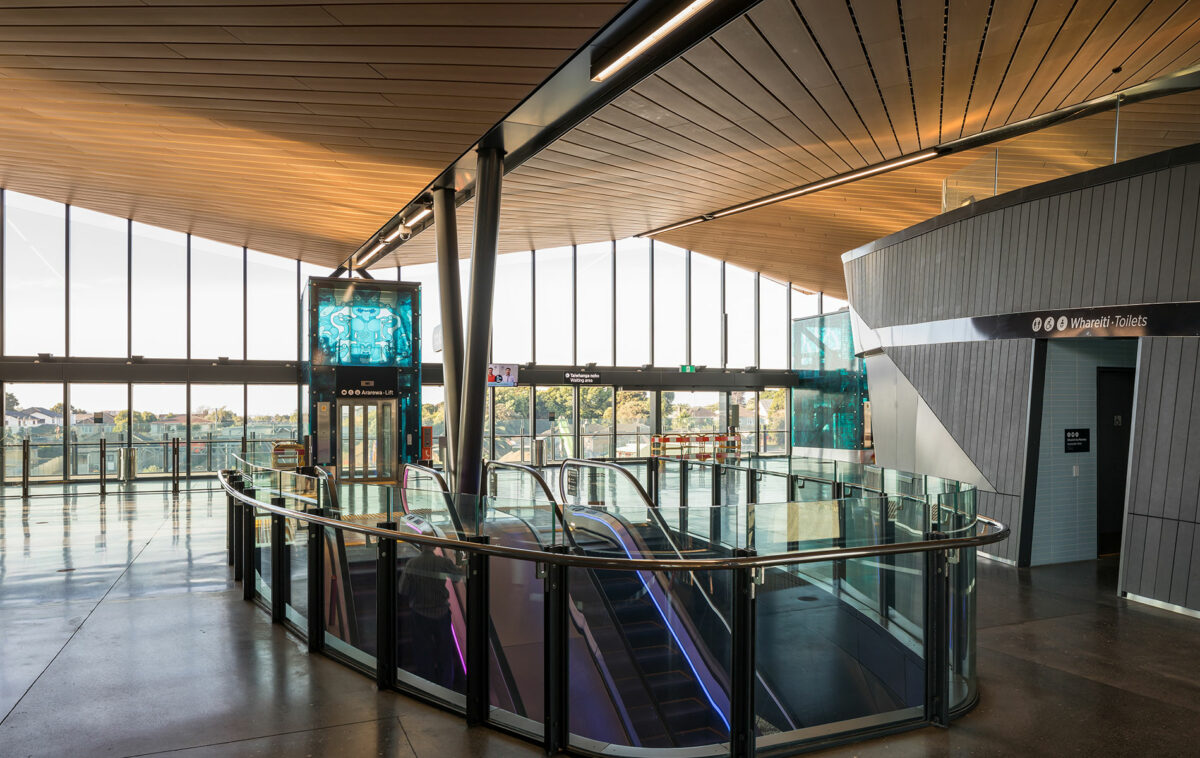

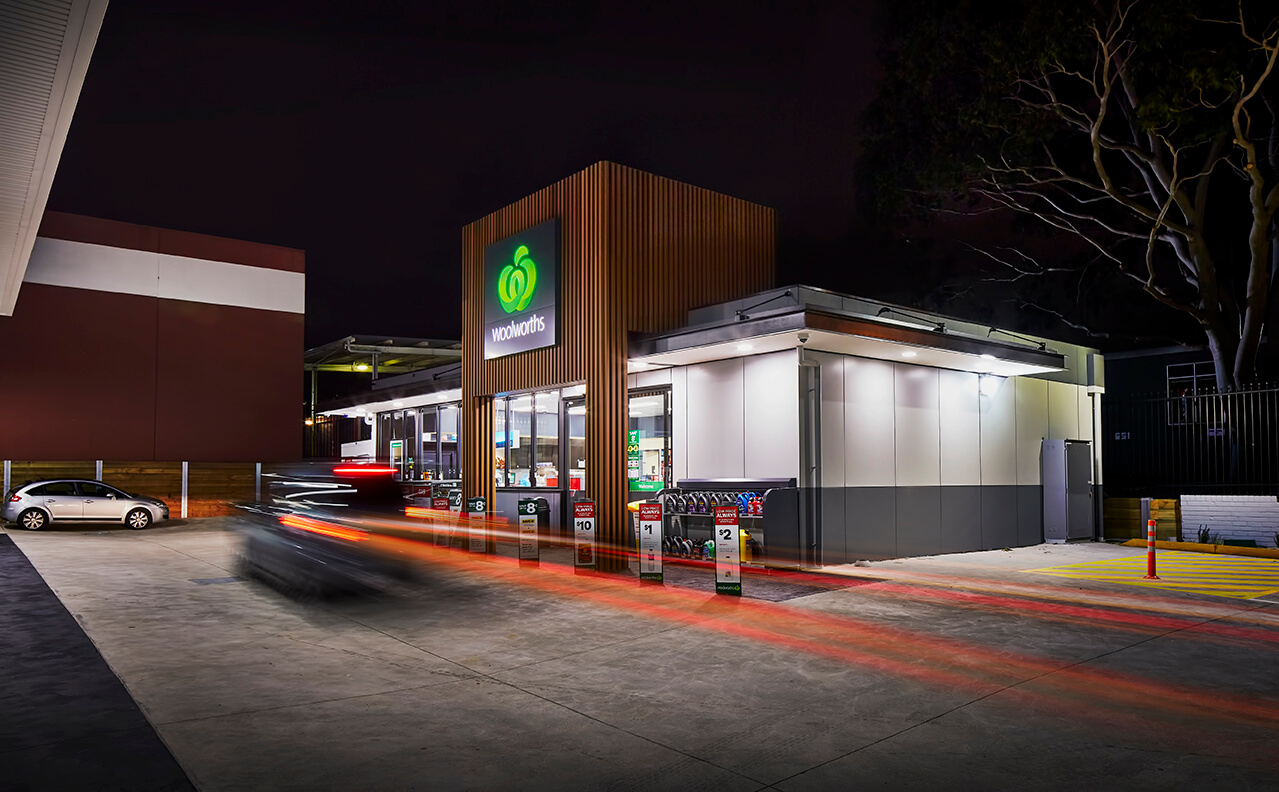

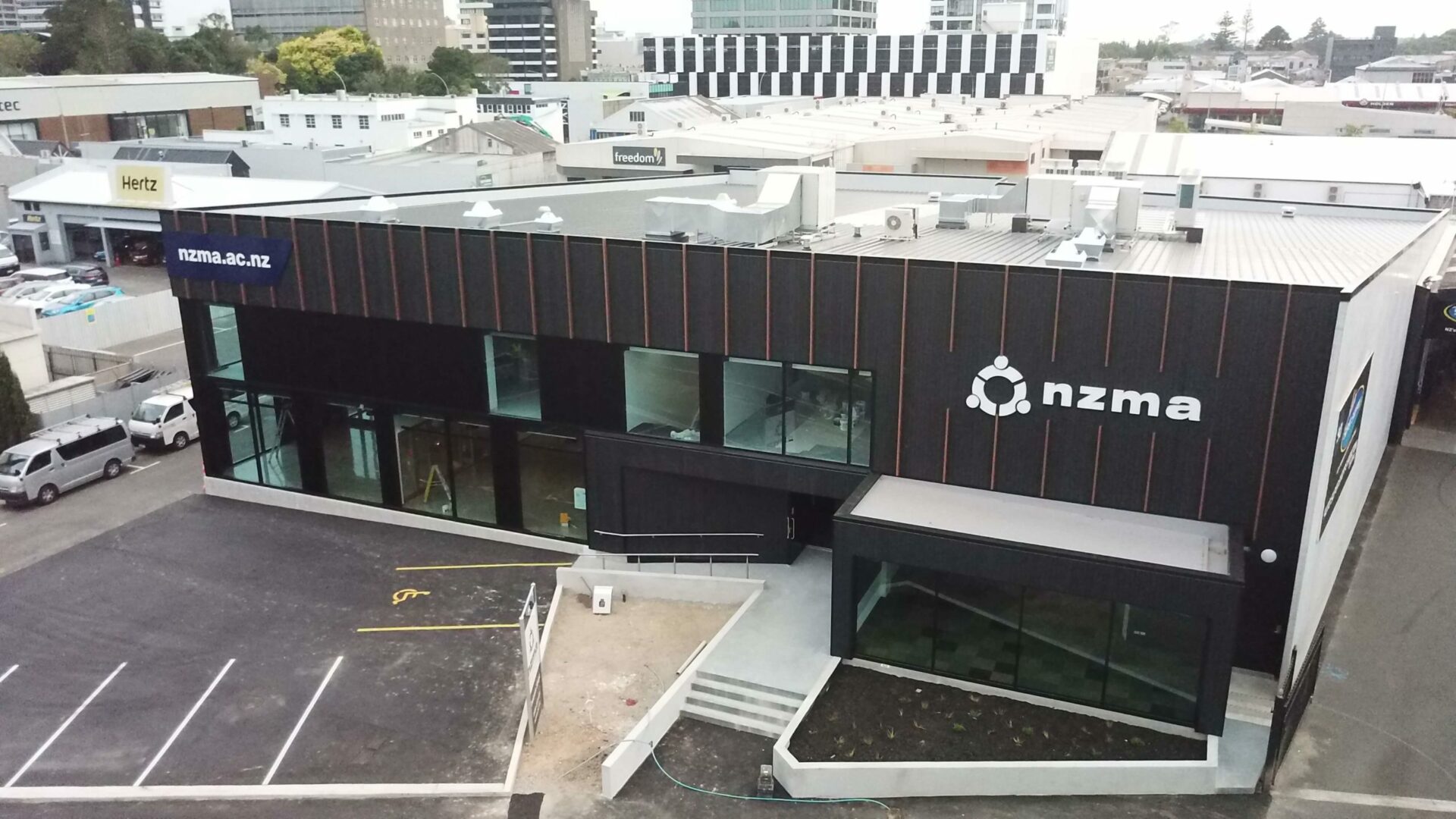

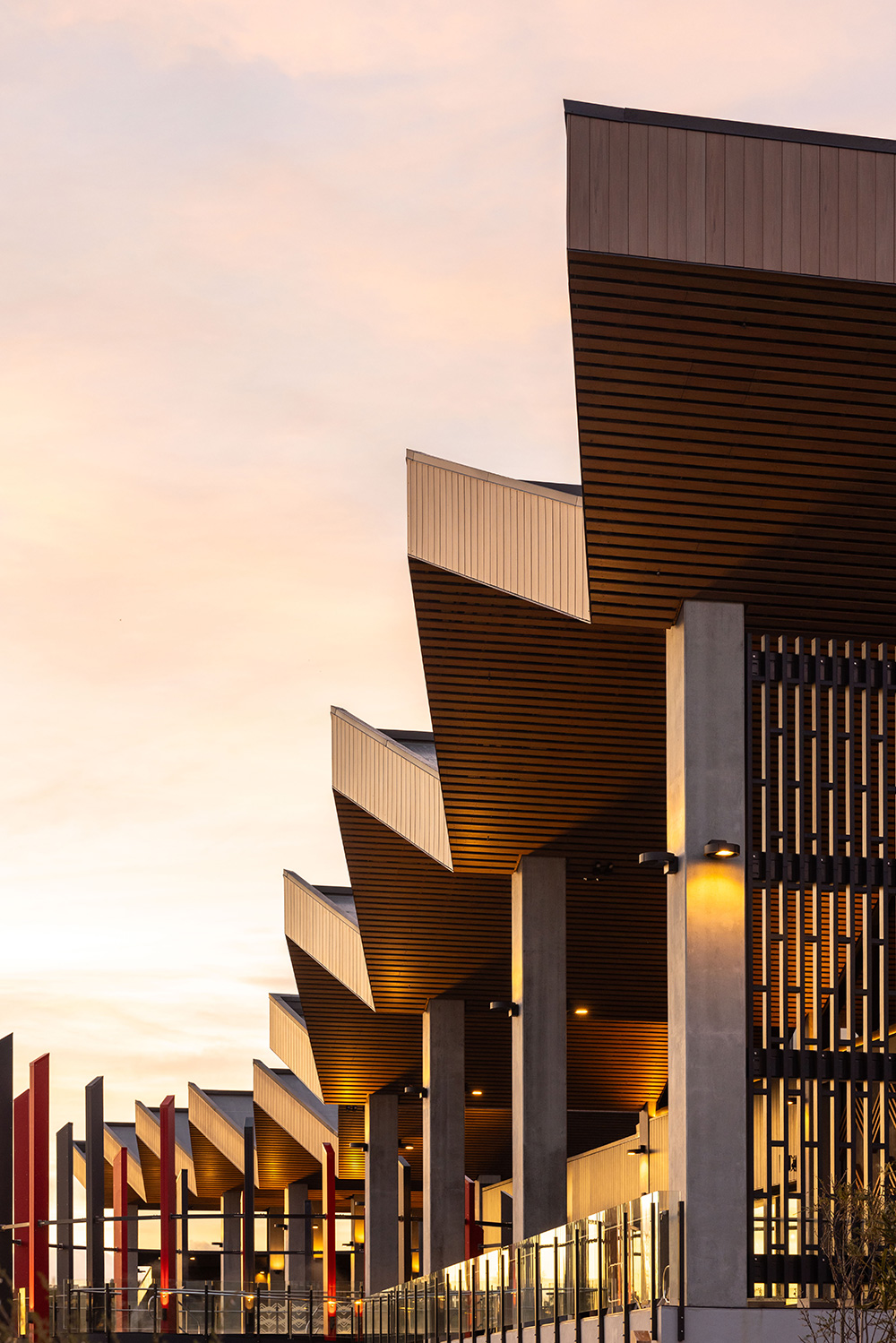

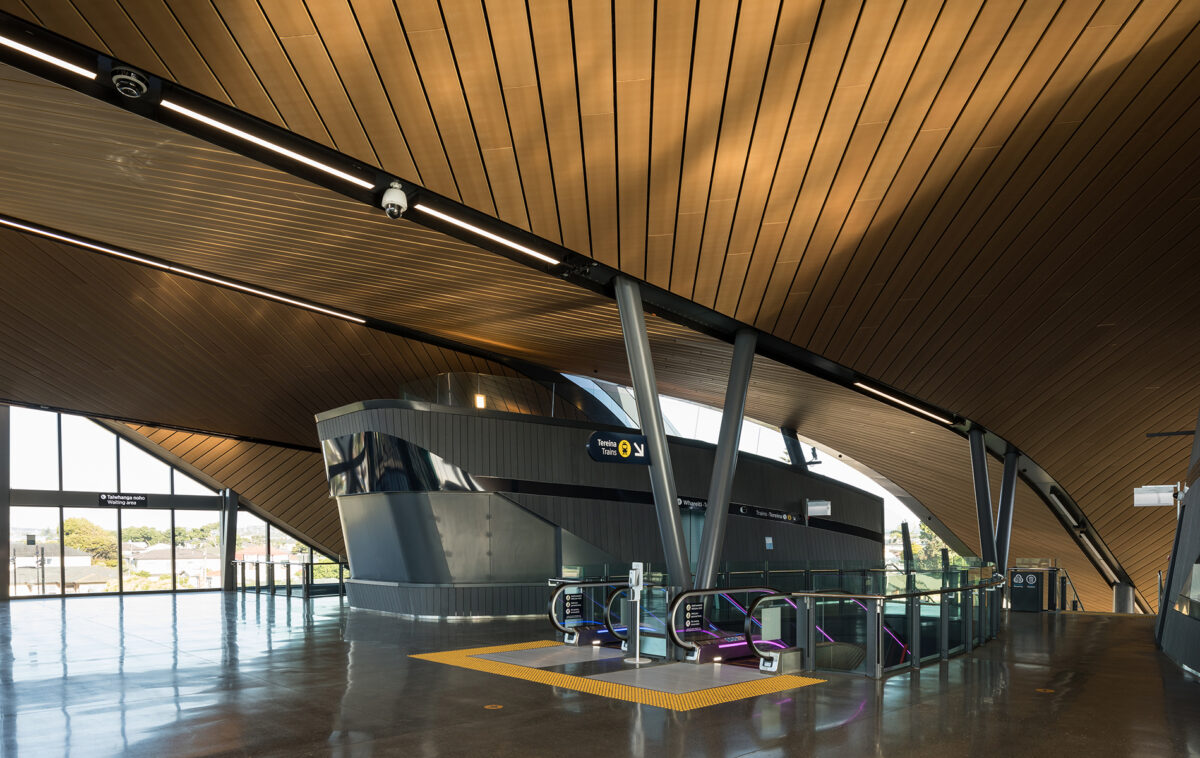

Timber look ceilings across New Zealand
InnoCeil composite ceiling systems create warm, sophisticated spaces across residential, commercial, health, and hospitality projects.
Selected Project
Interior Project
Sustainability
Designed with the environment in mind
Innowood plans to introduce a Recycling and Replacement Service as part of its commitment to environmental stewardship. This service will allow customers to return offcuts and end-of-life Innowood products to be recycled back into new profiles — reducing landfill and supporting a circular economy.
The company has committed to carbon-neutral operations and continues to invest in sustainable manufacturing practices. An Environmental Product Declaration (EPD) is available for download below.
Innowood InnoCeil Resources
Brochure, installation manuals, and care guide
Access the InnoCeil brochure, installation manuals, concealed lock-in fixing guide, and care and maintenance guide below.
Resources
Document library
If your browser blocks the embedded preview, use the open or download link above.
Need Help Specifying?
Our technical team can assist with product selection, CAD details, and sample requests for your next project.
Get in Touch
Tell us about your project and we'll help with specification.
